Abstract

HuaTuo (华佗) aims to provide in-depth observability for the OS Linux kernel in complex cloud-native scenarios. The project is based on eBPF technology and has built a set of deep observation service components for the Linux kernel. By leveraging kernel dynamic tracing technologies such as kprobe, tracepoint, and ftrace, HuaTuo provides more observation perspectives for the Linux kernel, including kernel runtime context capture driven by anomalous events and more granular, accurate kernel per subsystem metrics.

HuaTuo also integrates core technologies such as automated tracing, profiling, and distributed tracing for system performance spikes. HuaTuo has been successfully applied on a large scale within Didi (DiDi Global Inc.), solidly guaranteeing the stability and performance optimization of cloud-native operating systems and showcasing the distinct advantages of eBPF technology in cloud-native scenarios.

Key Features

• Continuous Kernel Observability: Achieves in-depth, low-overhead (less than 1% performance impact) instrumentation of various kernel subsystems, providing comprehensive metrics on memory, CPU scheduling, network stack, and disk I/O.
• Kernel Anomaly-Driven Observability: Instruments the kernel's exception paths and slow paths to capture rich runtime context triggered by anomalous events, enabling more insightful observability data.
• Automated Tracing (AutoTracing): Implements automated tracing capabilities to address system resource spikes and performance jitters (e.g., CPU idle drop, raising CPU sys utilization, I/O bursts, and Loadavg raising).
• Smooth Transition to Popular Observability Stacks: Provides standard data sources for Prometheus and Pyroscope, integrates with Kubernetes container resources, and automatically correlates Kubernetes labels/annotations with kernel event metrics, eliminating data silos, ensuring seamless integration and analysis across various data sources for comprehensive system monitoring.

Getting Started

run

HuaTuo provides a convenient way for quick getting started, all in one command as below:

$ docker compose --project-directory ./build/docker up

Run it in the project root directory, then open http://localhost:3000 to view the panels on your browser.

The upper command starts three dependencies containers: elasticsearch, prometheus, grafana, then compiles and starts huatuo-bamai.

• Data related to event-driven operations, such as Autotracing and Events, are stored in elasticsearch
• Metrics-related data is actively collected and stored by prometheus
• elasticsearch data reporting port: 9200
• prometheus data source port: 9090
• grafana port: 3000

User-Defined Collection

The built-in modules cover most monitoring needs. Additionally, HuaTuo supports custom data collection with easy integration. How to Add Custom Collection

Architectures

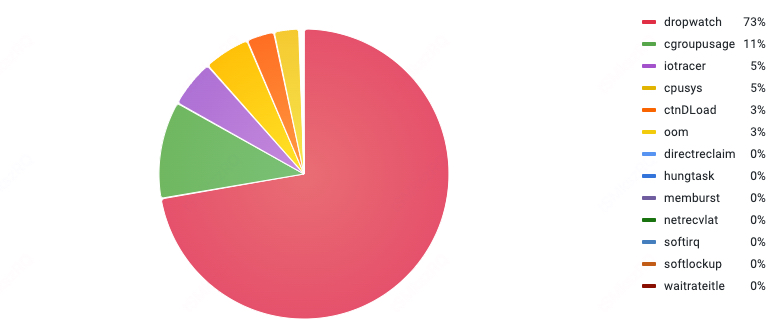

Observability Overview

Exception Totals

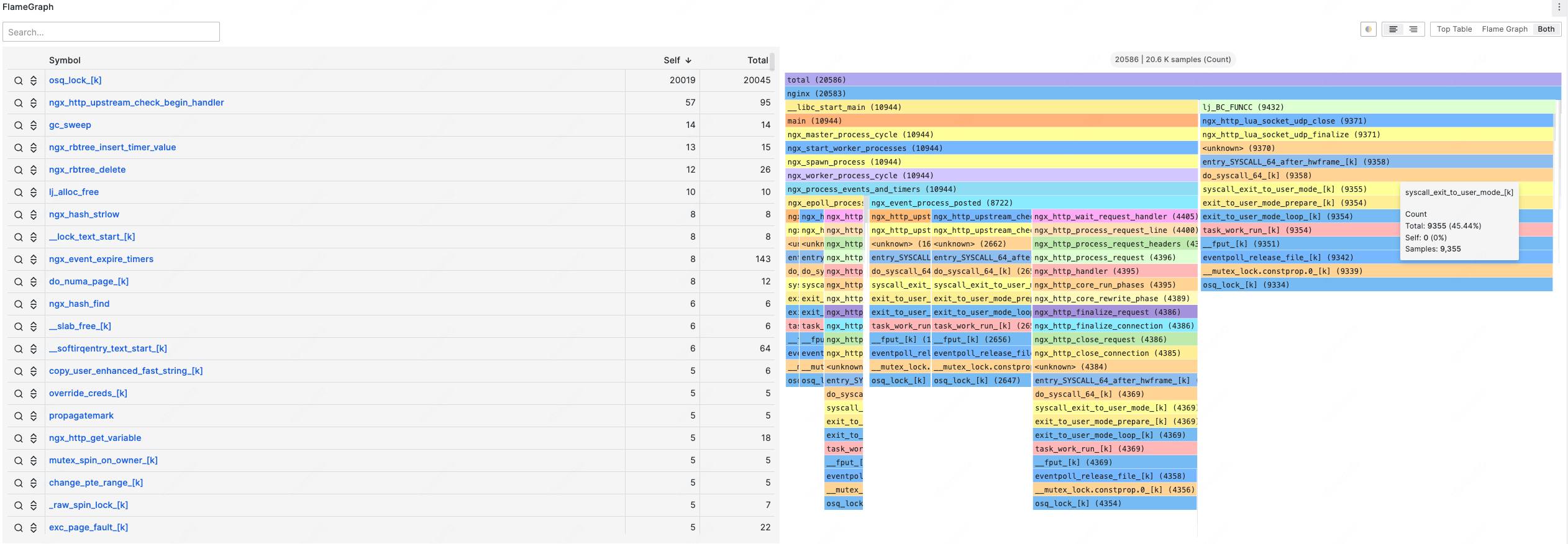

Profiling

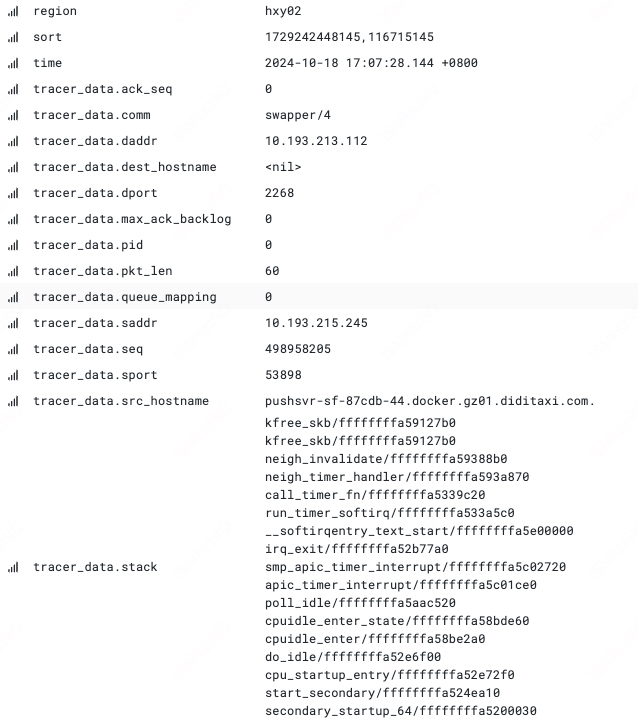

SKB dropwatch

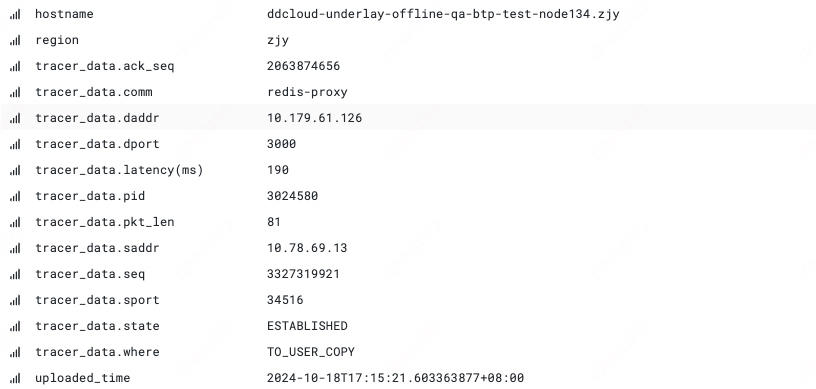

Net Latency

Functionality Overview

Autotracing

Tracing Name	Core Functionality	Scenarios
cpu sys	Detects rising host cpu.sys utilization	Issues caused by abnormal cpu.sys load leading to jitters
cpu idle	Detects low CPU idle in containers, provides call stack, flame graphs, process context info, etc.	Abnormal container CPU usage, helps identify process hotspots
dload	Tracks processes in the D (uninterruptible) state, provides container runtime info, D-state process call stack, etc.	Issues caused by a sudden increase in the number of system D or R (runnable) state processes, leading to higher load. A spike in D-state processes is often related to unavailable resources or long-held locks, while R-state process spikes may indicate unreasonable user logic design
waitrate	Detects CPU contention in containers, provides information about the contending containers	CPU contention in containers can cause jitters, and the existing contention metrics lack specific container info. Waitrate tracking can provide the info about the containers involved in the contention, which can be used as a reference for resource isolation in hybrid deployment scenarios
mmburst	Records burst memory allocation context	Detects events where the host allocates a large amount of memory in a short time, which can lead to direct reclaim or OOM
iotracer	When the host disk is full or I/O latency is abnormal, provides the file name, path, device, inode, and container context info for the abnormal I/O access	Frequent disk I/O bandwidth saturation or sudden I/O spikes can lead to application request latency or system performance jitters

Events

Event Name	Core Functionality	Scenarios
softirq	When the kernel delayed response in soft interrupts or prolonged shutdown, supports the call stack and process information of the soft interrupts that have been shut down for an extended period of time.	This type of issue can severely impact network receive/transmit, leading to jitters or latency
dropwatch	Detects TCP packet drops, provides host and network context info when drops occur	This type of issue can cause jitters and latency
netrecvlat	Captures latency events along the data packet receive path from the driver, TCP/IP stack, to user-level	For network latency issues, there is a class where the receive-side exhibits latency, but the location is unclear. The netrecvlat case calculates latency by timestamping the skb at the interface, driver, TCP/IP stack, and user-level copy, and filters timed-out packets to point the latency location
oom	Detects OOM events in the host or containers	When OOM events occur at the host or container level, it can obtain information about the triggering process, the killed process, and container details, which is helpful for diagnosing process memory leaks, abnormal exits, etc.
softlockup	When the system encounters a softlockup, it collects information about the target process, CPU, and kernel stack for per CPU	Used for investigating system softlockup incidents
hungtask	Provides the number of processes in the D (uninterruptible) state and their kernel stack info	Used to identify and save the context of processes that suddenly enter the D state, for later investigation
memreclaim	Records the latency when a process enters direct reclaim, if it exceeds a time threshold	When under memory pressure, if a process requests memory, it may enter direct reclaim, a synchronous reclaim phase that can cause process jitters. This records the time a process spends in direct reclaim, helping assess the impact on the affected process

Metrics

Metrics collection involves various indicators from per subsystem, including CPU, memory, IO, network, etc. The primary sources of these metrics are procfs, eBPF, and computational aggregation, as follows is a summary. for details

Subsystem	Metric	Description	Dimension
cpu	sys, usr, util	Percentage	host, container
cpu	burst, throttled	Number of periods burst occurs, times the group has been throttled/limited	container
cpu	inner, exter_wait_rate	Wait rate caused by processes inside/outside the container	container
cpu	nr_running, nr_uninterruptible	The number of running/uninterruptible tasks in the container	container
cpu	load 1, 5, 15	System load avg over the last x minute	container
cpu	softirq_latency	The number of NET_RX/NET_TX irq latency happened	host
cpu	runqlat_nlat	The number of times when schedule latency of processes in host/container is within x~xms	host, container
cpu	reschedipi_oversell_probability	The possibility of cpu overselling exists on the host where the vm is located	host
memory	direct_reclaim	Time speed in page allocation in memory cgroup	container
memory	asyncreclaim	Memory cgroup's direct reclaim time in cgroup async memory reclaim	container
memory	vmstat, memory_stat	Memory statistics	host, container
memory	hungtask, oom, softlockup	Count of event happened	host, container
IO	d2c	Statistics of io latency when accessing the disk, including the time consumed by the driver and hardware components	host, container
IO	q2c	Statistics of io latency for the entire io lifecycle when accessing the disk	host, container
IO	disk_freeze	Statistics of disk freeze events	host
IO	disk_flush	Statistics of delay for flush operations on disk raid device	host, container
network	arp	ARP entries	system, host, container
network	tcp, udp mem	Socket memory	system
network	qdisc	Qdisc statistics	host
network	netdev	Network device metrics	host, container
network	netstat	Network statistics	host, container
network	sockstat	Socket statistics	host, container

Contact Us

You can report bugs, provide suggestions, or engage in discussions via Github Issues and Github Discussions. Alternatively, you can contact us using the following ways:
